H.P. Homogenizers & Plunger Pumps

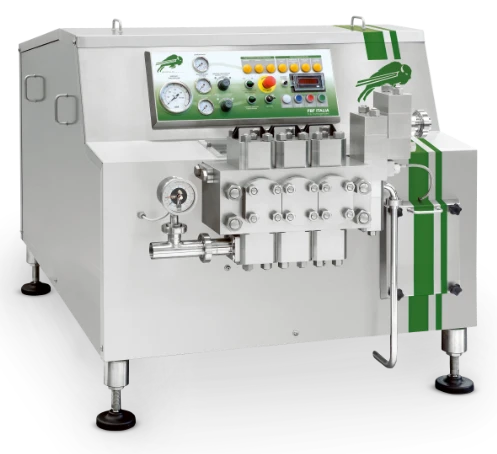

Industrial Homogenizers

MODELS No.

FBF5018 · FBF5022 · FBF5030

Our high-pressure homogenizers represent quality and innovation, delivering superior performance and remarkable results. With their advanced setup, we promise accurate and even mixing of substances, particle size reduction, and unparalleled stability in your production process. By choosing our industrial homogenizers, you'll have top-tier, cutting-edge, and bespoke solutions, designed to flawlessly meet your specific needs and excel across various application sectors.

FBF Italia's industrial homogenizers stand out for their full compliance with EC regulations, ensuring utmost safety and reliability. For American markets 3A certified machines.

USP :

Integrated Gear Box
Multi Block Compression Head
Tungsten carbide homogenizing Valve

Our industrial homogenisers are synonymous with quality and innovation, offering superior performance and extraordinary results. Thanks to their advanced configuration, we guarantee you precise and uniform mixing of substances, particle size reduction, and unparalleled stability in your production process. By choosing our industrial homogenisers, you will have access to top-level, cutting-edge, and customised solutions, designed to perfectly adapt to your specific needs and to excel in various and numerous application sectors.

The Buffalo Series homogenizers comply with CE regulations and are available with hourly capacities ranging from 50 to 50,000 l/h, for homogenisation pressures up to 2,000 bar.

Technical Data

Compression Head and Homogenizing Valve

Compression head manufactured from a single block of high quality stainless steel (duplex 2205 or equivalent), machined and ultrasounds checked, with a 5 year guarantee against cracking
Each valve assembly is housed within an individually inspectable duplex 2205 (or equivalent) stainless steel block
Plungers in stainless steel with double coating in chrome and DLC (Diamond Like Carbon)
Rear water chambers (significant reduction in water consumption) containing double bushings for plungers alignment
Valve group assemblies have replaceable seats and hemispherical valve shutters, ideal for processing a very wide range of products
omogenizing valves designed to provide efficient use of energy, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration-free homogenization
Safety valve, in sanitary execution, of spring type with replaceable shutter and seat

Pump body made from a thick walled premium grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibrations
Crankshaft made of special type ultrasounds checked steel, machined from a heat treated solid piece with high-quality finishing of the crankpins and complete nitriding; supported by 5 heavy-duty roller bearings (with bronze bearings used on the crank pins only)
Power transmission with double reduction stage: "V" belts/pulleys, semi-automatic tensioning system, with two helicoidal gears in the pump body (slow gear coupled directly on the crankshaft)
Pressurized type lubricating plant, correct oil level checked by a proper inspection window installed on the machine front side, irregular oil pressure alarm with warning light, driven impurities filtering. For the best thermal balance / dissipation all transmission's components are oil splashed
3 phase, 4 pole, AC electric drive motor of leading Companies
Frame made of thick carbonated steel squaresection pipe, powder coated, supplied with dismountable satin finish satinless-steel panels

Maintenance Kit

Initial spare parts set supplied with the machine includes the following: full set of gaskets, a set of valve springs and a complete safety valves set
Set of tools for ordinary maintenance
Lubrication oil
Instruction and maintenance manuals (2 copies + CD ROM)

Standard Options

2nd stage homogenizing valve controlled by a special oil-pneumatic system
Digital pressure transducers and analogue gauges with 4-20 mA output
Fixed Capacity (internal electrical board)
Variable Capacity (external stainless steel panel)
Aseptic Version with "sterility barriers" traced with steam condensate created by an integrated plant
Pulsation dampeners on product inlet and/or outlet connections, for special aseptic version as well
Pressure gauge with alarm contacts for the automatic cut-off of the homogenizing pressure, complete with timing device to manage the start/ stop of the homogenizing valves
Automatic homogenization pressure controller

Technical Features

Homogenizer Model	Engine (kW)	Plungers (Nr.)	Water consumption (l/h)	Dimensions LxPxH (cm)	Weight (approx.) (kg)
FBF 5018 FBF 5022 FBF 5030	18,5 22 30	3	90-120	120x155x130	1.200-1.270

Functional Features

Operating pressure	bar	100	130	150	180	200	230	250	300
Capacity	from (l/h)	-	4.700	4.200	3.700	3.200	2.700	2.200	2.200
Capacity	to (l/h)	-	6.000	6.000	5.000	4.500	4.000	3.500	3.000

Versions

The Versions Offered are :

Sanitary
Aseptic, for UHT plants
With a second stage of homogenization
Standard, for the process of products, such as milk, yogurt, creams, etc.
Abrasive, for the process of products, such as fruit juices, ice cream, ketchup, etc.

Optional Equipment

There are also numerous optional features available, in order to offer tailored machines, here are some :

Partial machine automation, with the possibility to operate on it manually and/ or remotely from a PLC on the system
Pulse compensators on product input and output
Pressure transducer with digital reading of the homogenization pressure
System for partial homogenization
Device for the automatic disconnection of the homogenization pressure in case of incorrect machine feeding
Electrical system for fixed flow rate
Electrical system for variable flow rate
Electrical system for dual flow rate

Technical specifications can vary and are subject to change without notice
